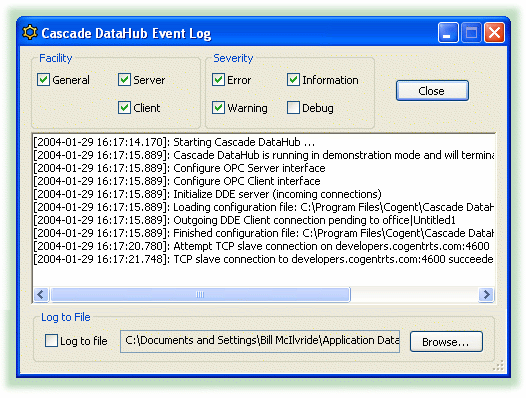

This window lets you view a log of events from the Cascade DataHub. You can open this window in either of two ways:
Click thebutton in the Properties window.
Right click the DataHub icon in the system tray and selectfrom the pop-up menu.
You can specify the category of event Facility and level of Severity by checking and unchecking the related items. It is possible to open multiple Event Log windows, and select different Facility and Severity options in each window.
Theoption is very verbose. Operating in this mode could put an unusually high demand on system resources.
If you wish to save a log, you can have the Cascade DataHub write the log to a file. Just check thebox and specify the filename in the entry field. You can use the button to find a file. If the file you specify doesn't exist, the DataHub will create it. If the file does exist, the DataHub will append log data to the file. As long as the box is checked, the DataHub will append all log entries to the file, even when restarted after a shutdown.
